Simple Examples

How to run these examples

Each of the following examples can be run by clicking on the green source button
on the right side of each example, and running from within a ``.py`` python file
on a computer where moose is installed.

Alternatively, all the files mentioned on this page can be found in the main
moose directory. They can be found under

    (...)/moose/moose-examples/snippets

They can be run by typing

    $ python filename.py

in your command line, where filename.py is the python file you want to run.

All of the following examples show one or more methods within each python file.
For example, in the ``cubeMeshSigNeur`` section, there are two blue tabs
describing the ``cubeMeshSigNeur.createSquid()`` and ``cubeMeshSigNeur.main()``
methods.

The filename is the bit that comes before the ``.`` in the blue boxes, with
``.py`` added at the end of it. In this case, the file name would be
``cubeMeshSigNeur.py``.

Set-up a kinetic solver and model

with Scripting

With something else

Building a chemical Model from Parts

Disclaimer: Avoid doing this for all but the very simplest models. This is error-prone, tedious, and non-portable. For preference use one of the standard model formats like SBML, which MOOSE and many other tools can read and write.

Nevertheless, it is useful to see how these models are set up. There are several tutorials and snippets that build the entire chemical model system using the basic MOOSE calls. The sequence of steps is typically:

1. Create container (chemical compartment) for model. This is typically a CubeMesh, a CylMesh, and if you really know what you are doing, a NeuroMesh.

2. Create the reaction components: pools of molecules moose.Pool; reactions moose.Reac; and enzymes moose.Enz. Note that when creating an enzyme, one must also create a molecule beneath it to serve as the enzyme-substrate complex. Other less-used components include Michaelis-Menten enzymes moose.MMenz, input tables, pulse generators and so on. These are illustrated in other examples. All these reaction components should be child objects of the compartment, since this defines what volume they will occupy. Specifically , a pool or reaction object must be placed somewhere below the compartment in the object tree for the volume to be set correctly and for the solvers to know what to use.

3. Assign parameters for the components.

   • Compartments have a volume, and each subtype will have quite elaborate options for partitioning the compartment into voxels.
   • Pool s have one key parameter, the initial concentration concInit.
   • Reac tions have two parameters: K_f and K_b.
   • Enz ymes have two primary parameters k_cat and K_m. That is enough for MMenz ymes. Regular Enz ymes have an additional parameter k₂ which by default is set to 4.0 times k_cat, but you may also wish to explicitly assign it if you know its value.

4. Connect up the reaction system using moose messaging.

5. Create and connect up input and output tables as needed.

6. Create and connect up the solvers as needed. This has to be done in a specific order. Examples are linked below, but briefly the order is:

   1. Make the compartment and reaction system.
   2. Make the Ksolve or Gsolve.
   3. Make the Stoich.
   4. Assign stoich.compartment to the compartment
   5. Assign stoich.ksolve to either the Ksolve or Gsolve.
   6. Assign stoich.path to finally fill in the reaction system.

An example of manipulating the models is as following:

The recommended way to build a chemical model, of course, is to load it in from a file format specific to such models. MOOSE understands SBML, kkit.g (a legacy GENESIS format), and cspace (a very compact format used in a large study of bistables from Ramakrishnan and Bhalla, PLoS Comp. Biol 2008).

One key concept is that in MOOSE the components, messaging, and access to model components is identical regardless of whether the model was built from parts, or loaded in from a file. All that the file loaders do is to use the file to automate the steps above. Thus the model components and their fields are completely accessible from the script even if the model has been loaded from a file.

Cross-Compartment Reaction Systems

Frequently reaction systems span cellular (chemical) compartments. For example, a membrane-bound molecule may be phosphorylated by a cytosolic kinase, using soluble ATP as one of the substrates. Here the membrane and the cytsol are different chemical compartments. MOOSE supports such reactions. The following snippets illustrate cross-compartment chemistry. Note that the interpretation of the rates of enzymes and reactions does depend on which compartment they reside in.

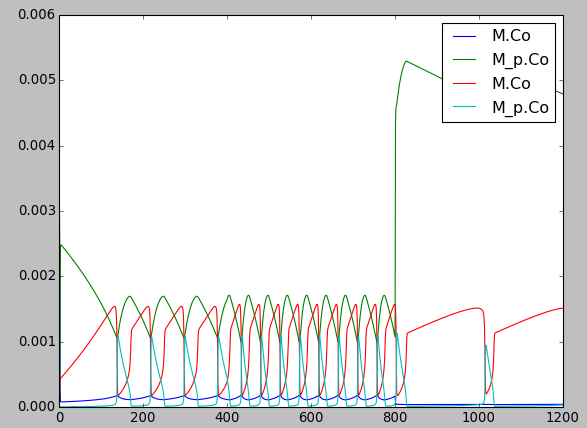

Tweaking Parameters

Models’ Demonstration

Oscillation Model

Bistability Models

MAPK feedback loop model

Simple minimal bistable model

Strongly bistable Model

Model of bidirectional synaptic plasticity

[showing bistable chemical switch]

Reaction Diffusion Models

The MOOSE design for reaction-diffusion is to specify one or more cellular ‘compartments’, and embed reaction systems in each of them.

A ‘compartment’, in the context of reaction-diffusion, is used in the cellular sense of a biochemically defined, volume restricted subpart of a cell. Many but not all compartments are bounded by a cell membrane, but biochemically the membrane itself may form a compartment. Note that this interpretation differs from that of a ‘compartment’ in detailed electrical models of neurons.

A reaction system can be loaded in from any of the supported MOOSE formats, or built within Python from MOOSE parts.

The computations for such models are done by a set of objects: Stoich, Ksolve and Dsolve. Respectively, these handle the model reactions and stoichiometry matrix, the reaction computations for each voxel, and the diffusion between voxels. The ‘Compartment’ specifies how the model should be spatially discretized.

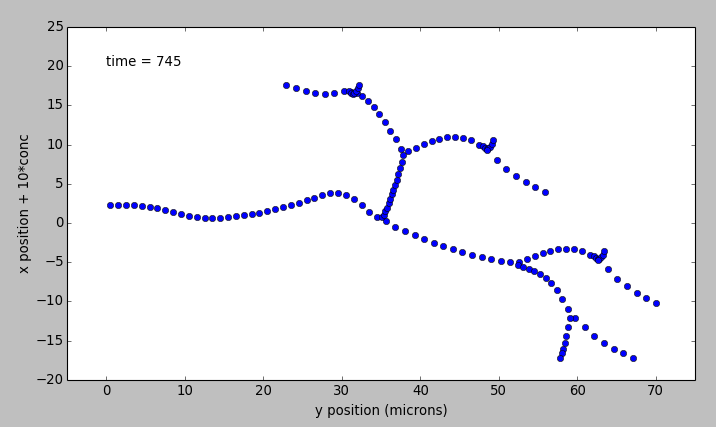

[Reaction-diffusion + transport in a tapering cylinder]

Neuronal Diffusion Reaction

A Turing Model

Reaction Diffusion in Neurons

Manipulating Chemical Models

Running with different numerical methods

Changing volumes

Feeding tabulated input to a model

Finding steady states

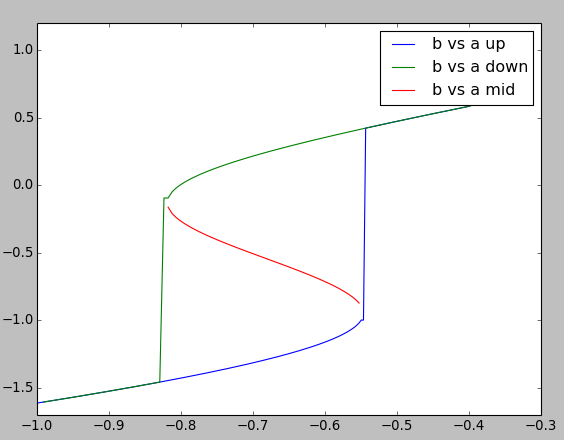

Making a dose-response curve

Transport in branching dendritic tree
